INTEGRAL SOLUTION FOR PLASTIC PACKAGING MANUFACTURERS AND LIQUID PACKERS.
END OF LINE AUTOMATION
"Turnkey project"
We design, manufacture and integrate the best solution for end-of-line automation. We excel in the sector of blow moulding of containers and packaging of liquids (oil, water, soft drinks, etc.), as well as offering an optimal solution for any type of industry.
We are experts in automatic handling of empty plastic containers, such as palletizing, depalletizing, transport, etc.
In end-of-line palletizing, we adapt to the client's needs and provide solutions to any limitations that may arise in the project, such as limited installation space, greater or lesser autonomy of the line, flexibility, etc.
CATALOG OF MACHINES

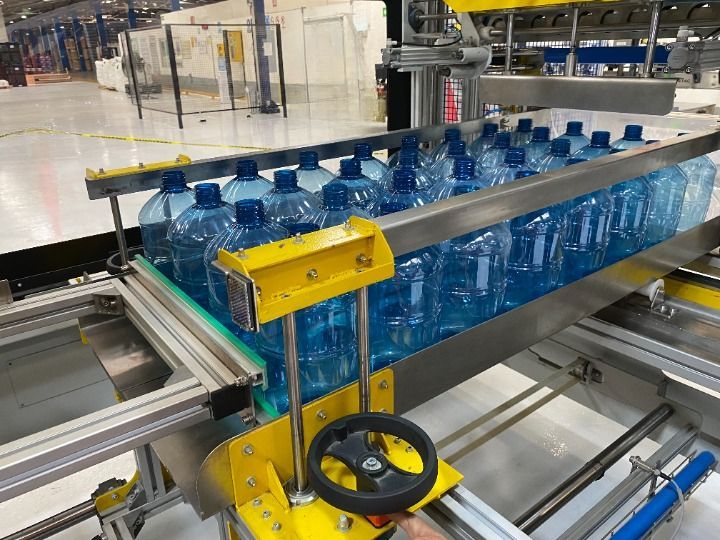

SEMI-AUTOMATIC PACKING MACHINE FOR PLASTIC CONTAINERS OR BOTTLES IN BAGS, Mod. EBTF-A1.000

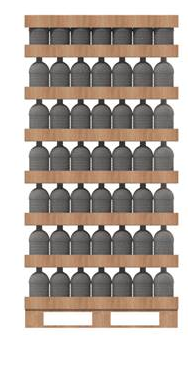

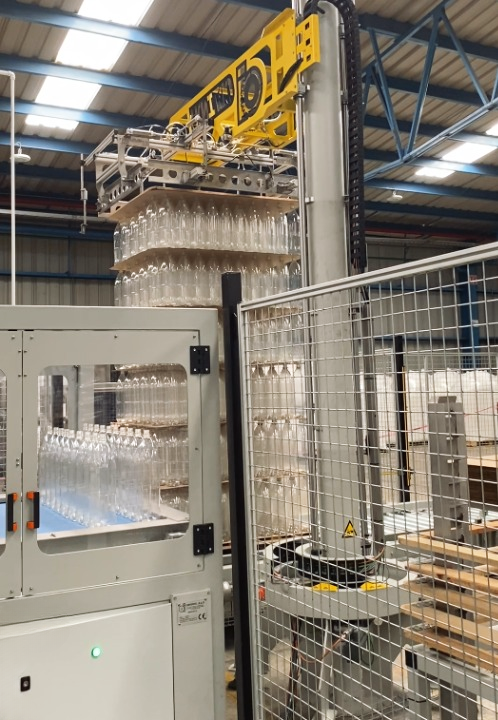

PALLETIZING SYSTEM FOR EMPTY PACKAGES
The automatic palletizing system for empty PET or HDPE containers consists of:

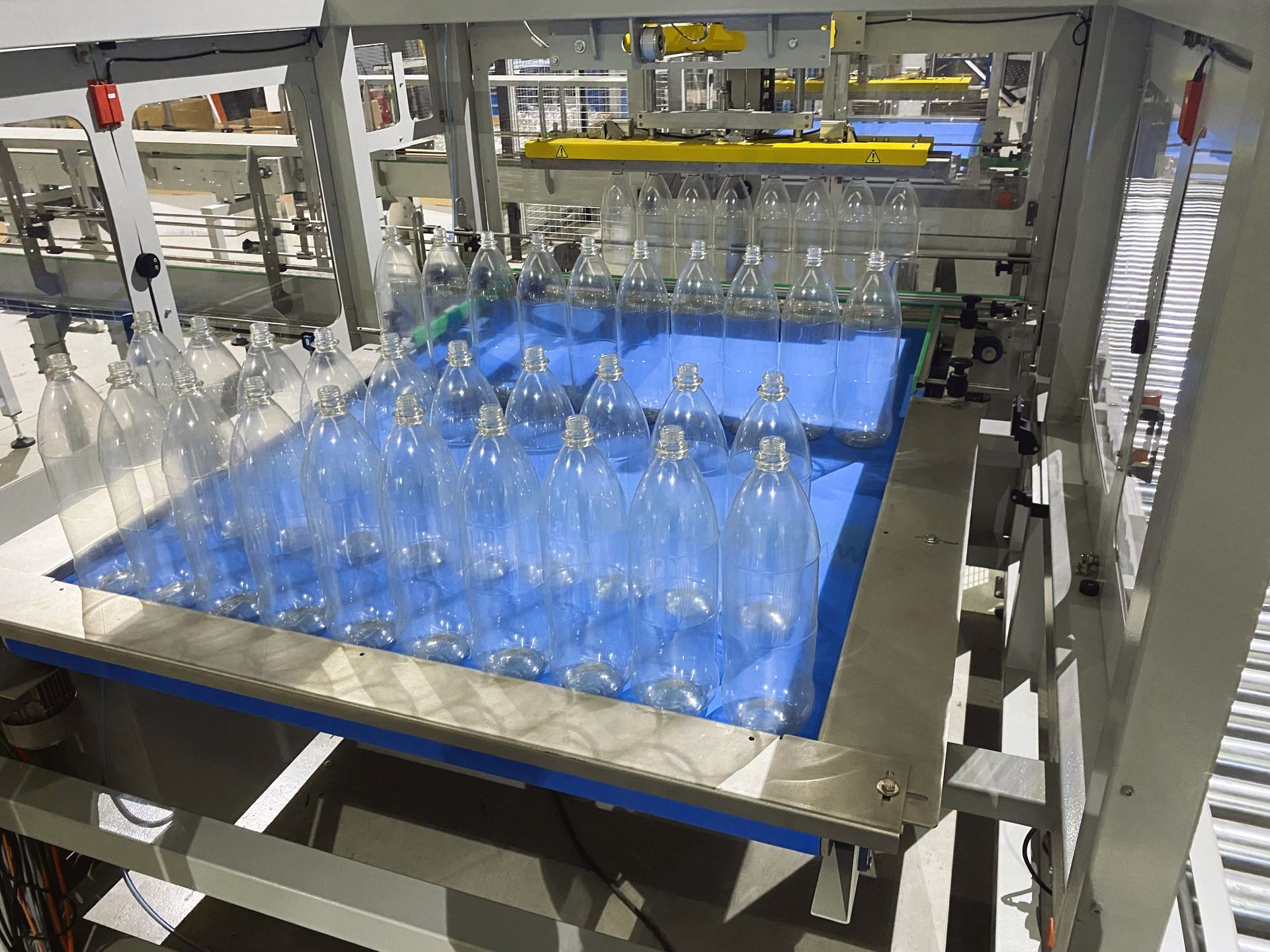

- Mosaic forming machine, arranging the containers or bottles, preparing each layer for removal. MOD. FM1.200
- Palletizing column with 270º rotation and vertically displaced carriage for forming pallets with a height of 2,500 mm including pallet. Mod. CPM2.5-270-LM.
- Storage store for cardboard sheets and wooden frames, with product detection.

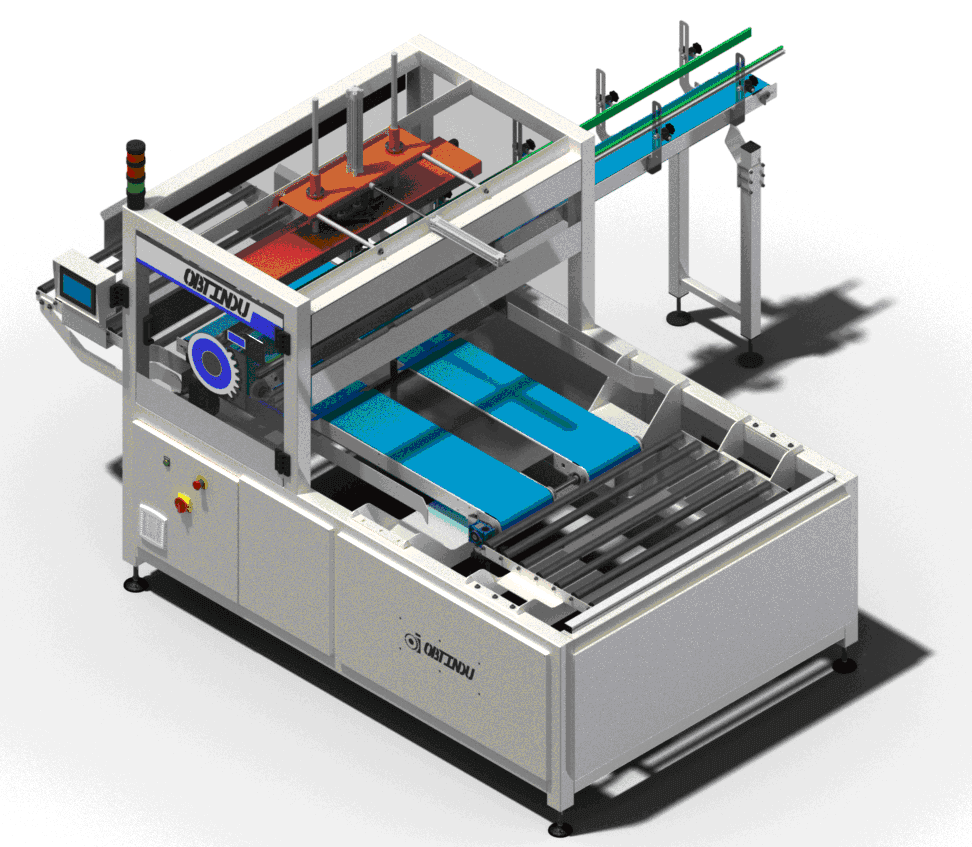

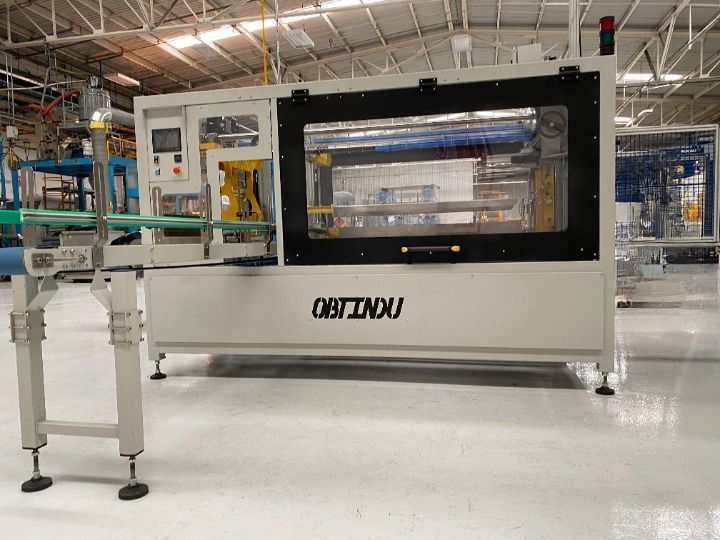

BOTTLE STORAGE SYSTEM IN TRAYS
Equipment designed for sorting rigid plastic containers in trays. The containers are fed by a conveyor into the machine, where they are placed inside the tray in rows using a "Pick and Place" system. Once the tray is filled with containers, the operator removes it to place it on a pallet. If you wish to remove the tray automatically and form the pallet, this is another solution that we also offer.

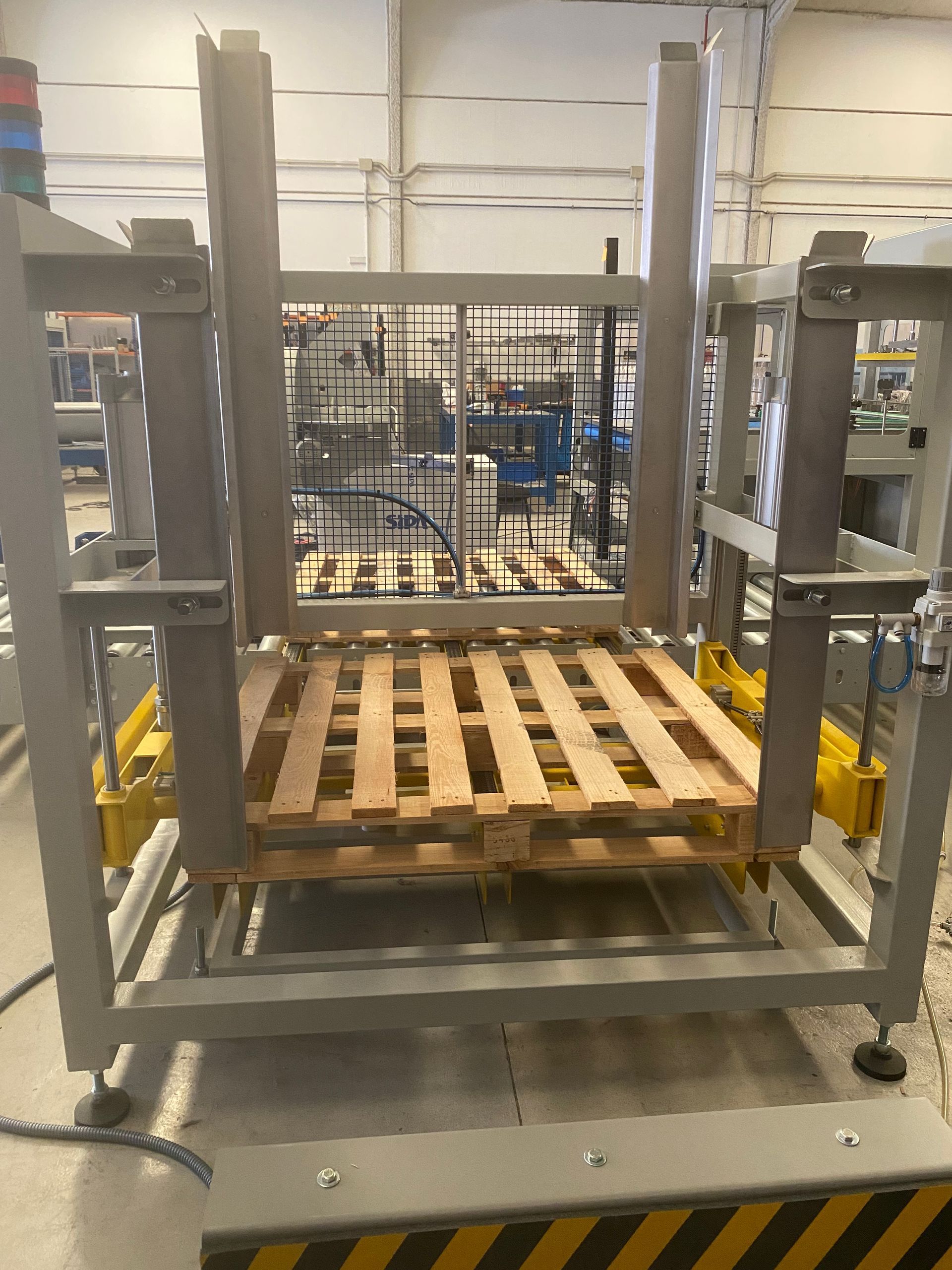

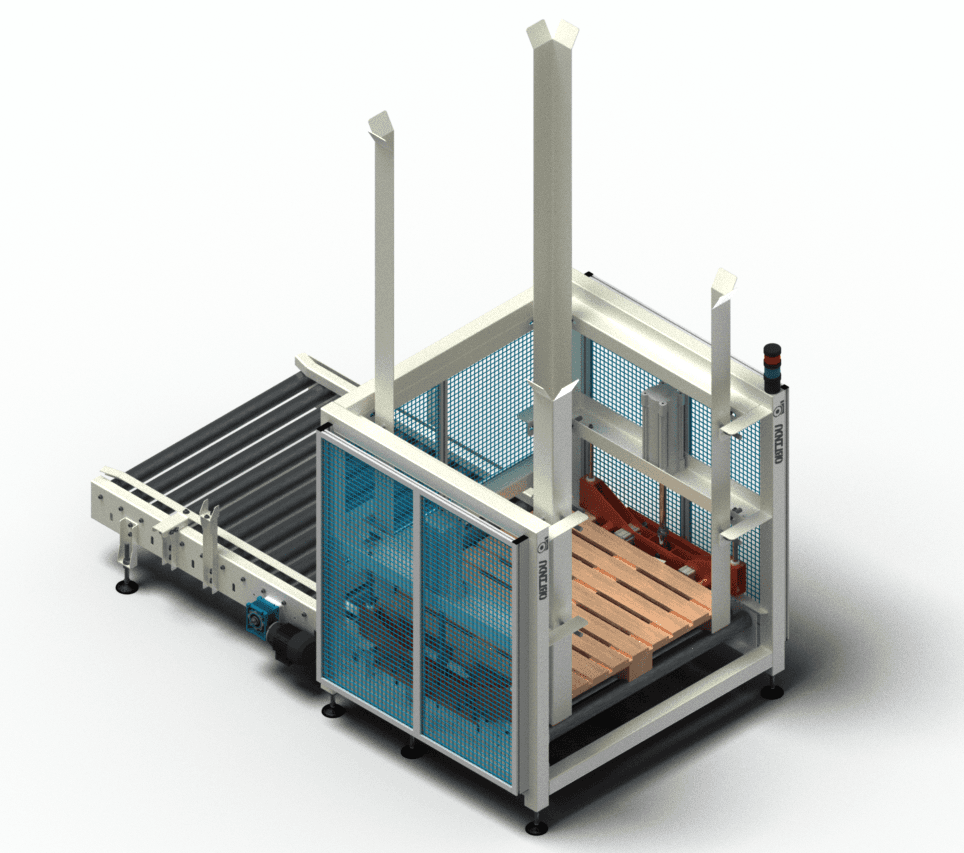

PALLET STACKER-DOSER
Automatic stacker-dispenser with pneumatic drive, with pallet shortage detection, chain conveyor and pneumatic lifting system for pallet dosing.
CONVEYORS FOR FULL AND EMPTY PACKAGES
Designed to adapt to the needs of the client, OBTINDU conveyors can be straight or curved with a stable movement of empty or full containers, and can be made of belts, chains, rollers, etc., depending on the case. They are made of stainless steel and have a height-adjustable railing for better guidance and adaptation of the container to be transported. We also manufacture pallet conveyors with the same level of quality and robust structure.
-
![Transportador de botellas vacías OBTINDU de la máquina sopladora para el paletizado.]()

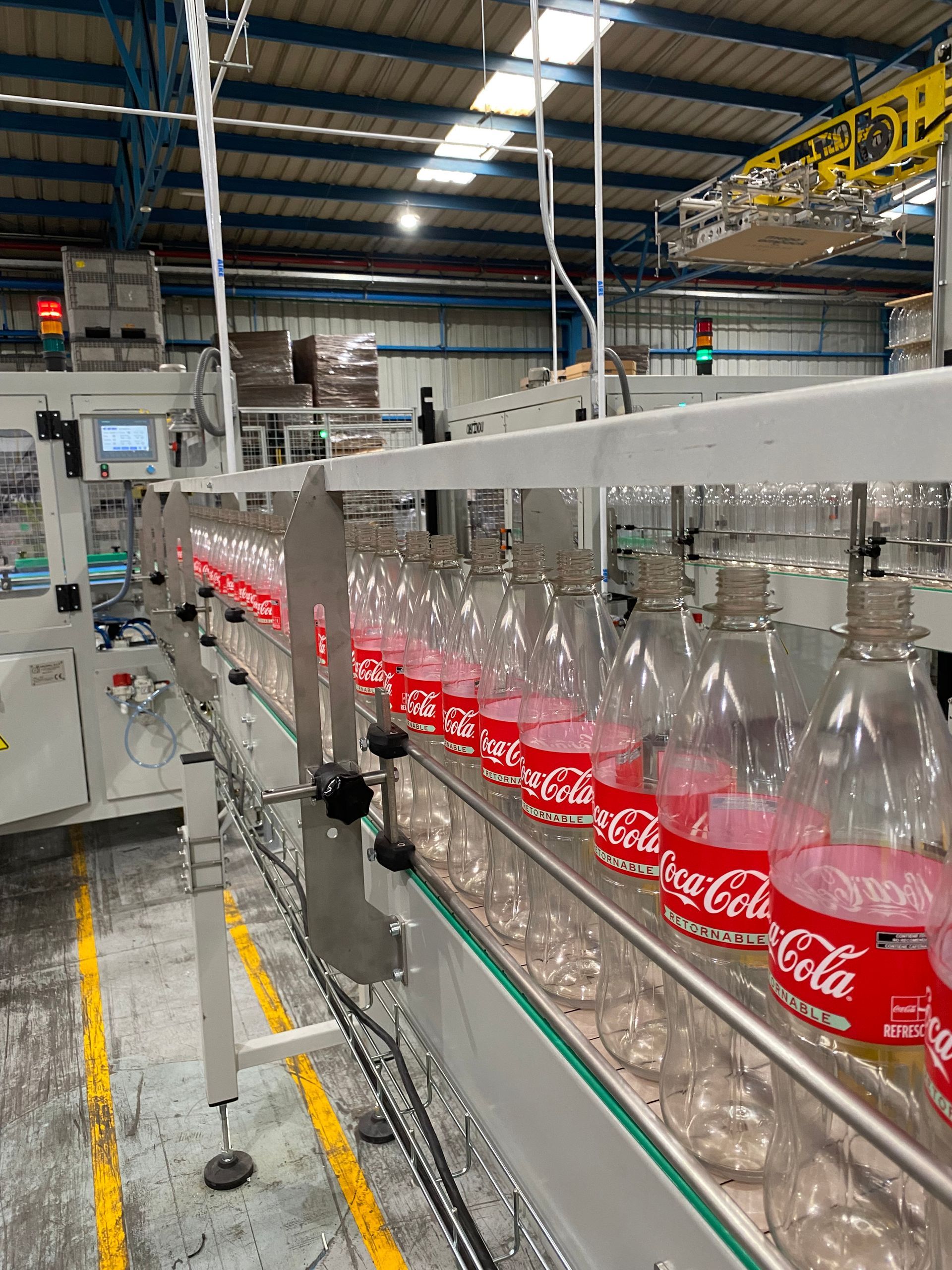

Bottle conveyor
Empty bottle conveyor from the blower to palletizing.Button -

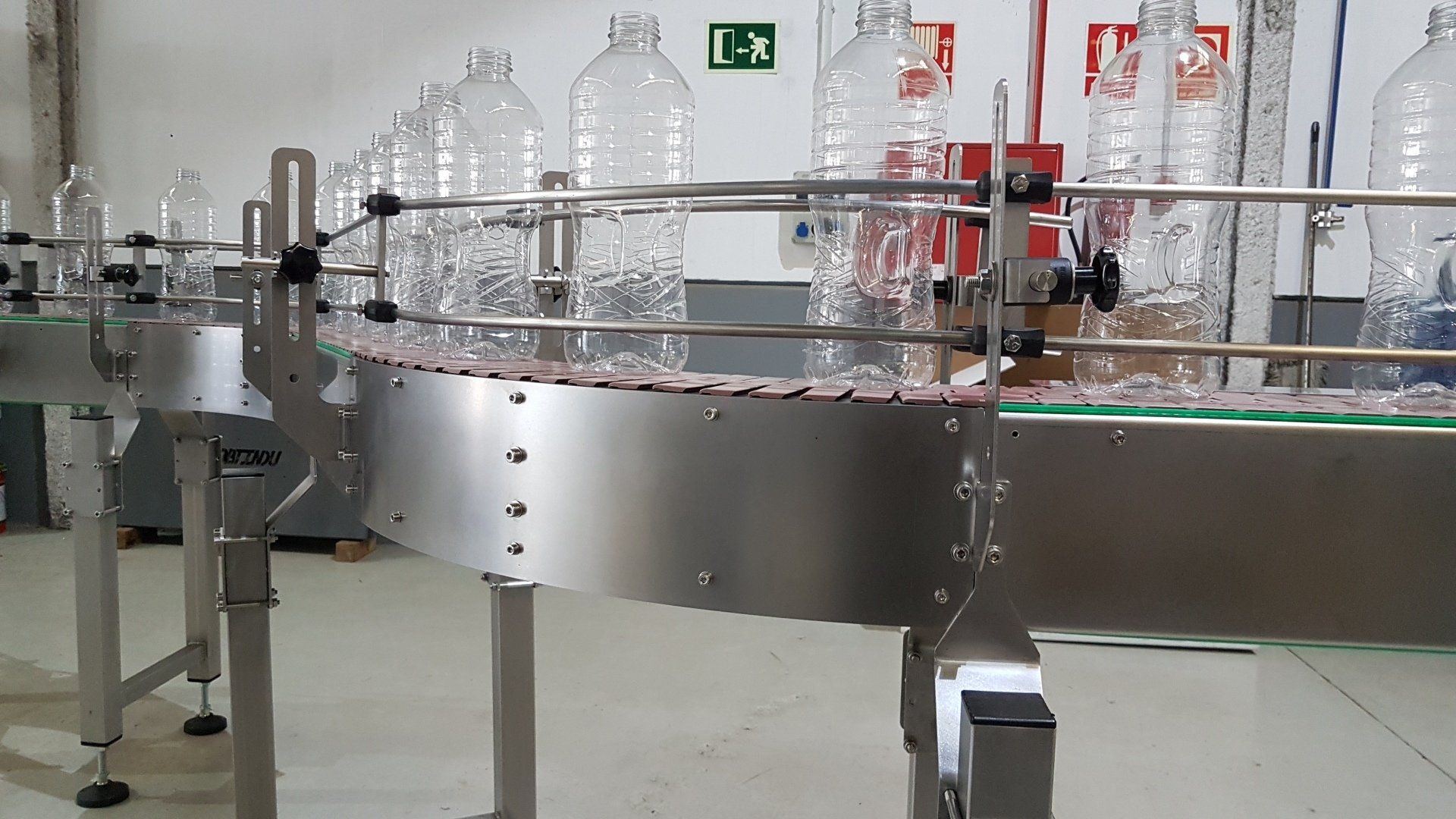

![Transportador curvo de charnela para botellas o envases vacíos.]()
Faces of Humanity
Curved hinge conveyor for empty bottles or containers.Button -
![Transportador de rodillos OBTINDU para desplazamiento de palé]()

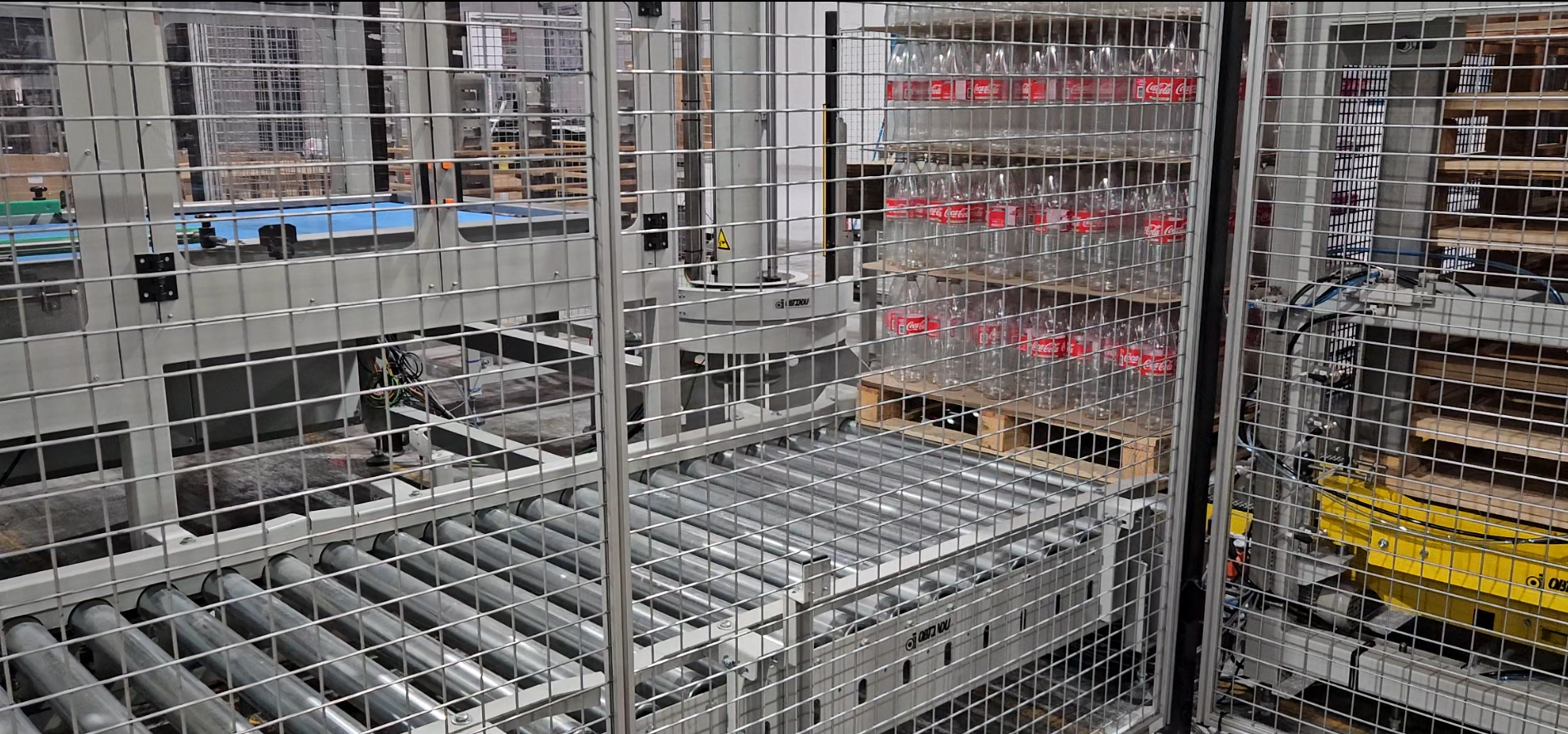

Roller conveyor for pallet movement
OBTINDU roller conveyor for pallet movementButton -
![Transportador de rodillos OBTINDU para botellas o frascos. entre otras funciones, se utiliza para sacar de la línea de producción envases defectuosos.]()

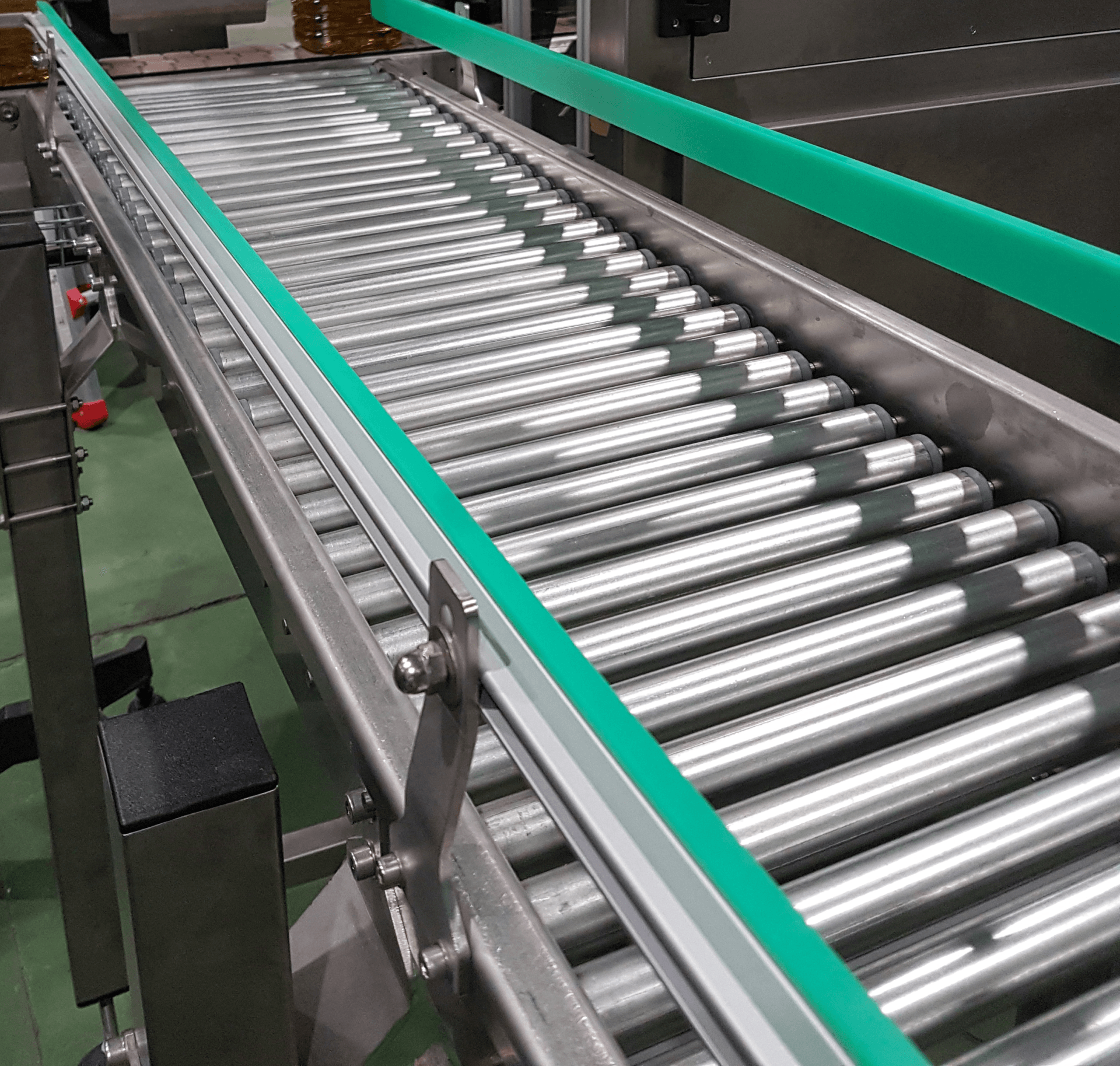

OBTINDU reject conveyor for bottles or jars
OBTINDU roller conveyor for bottles or jars. Among other functions, it is used to remove defective containers from the production line.Button -

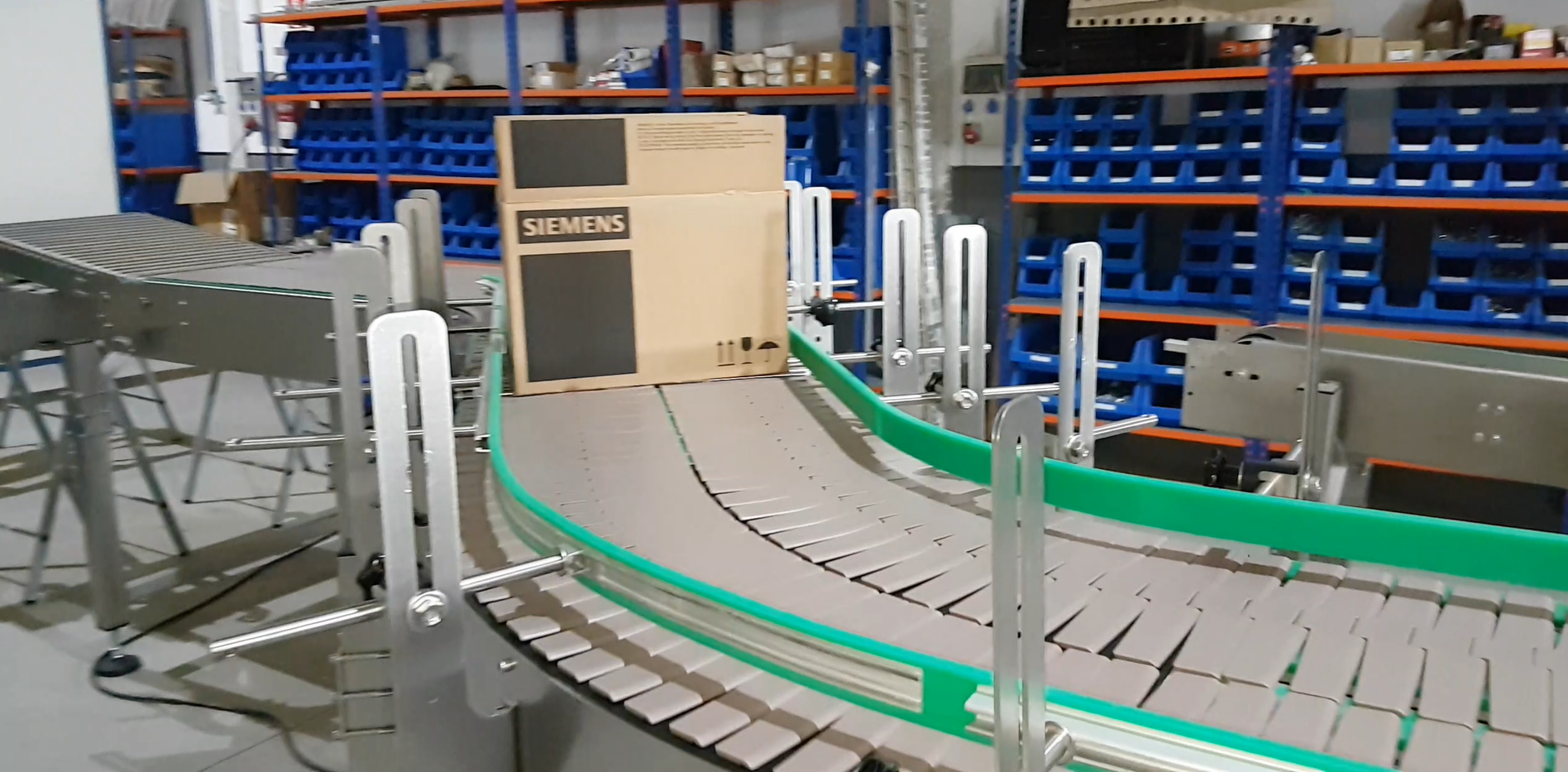

![Transportador de charnela OBTINDU, para el desplazamiento de botellas, frascos, latas, cajas, etc..]()
-

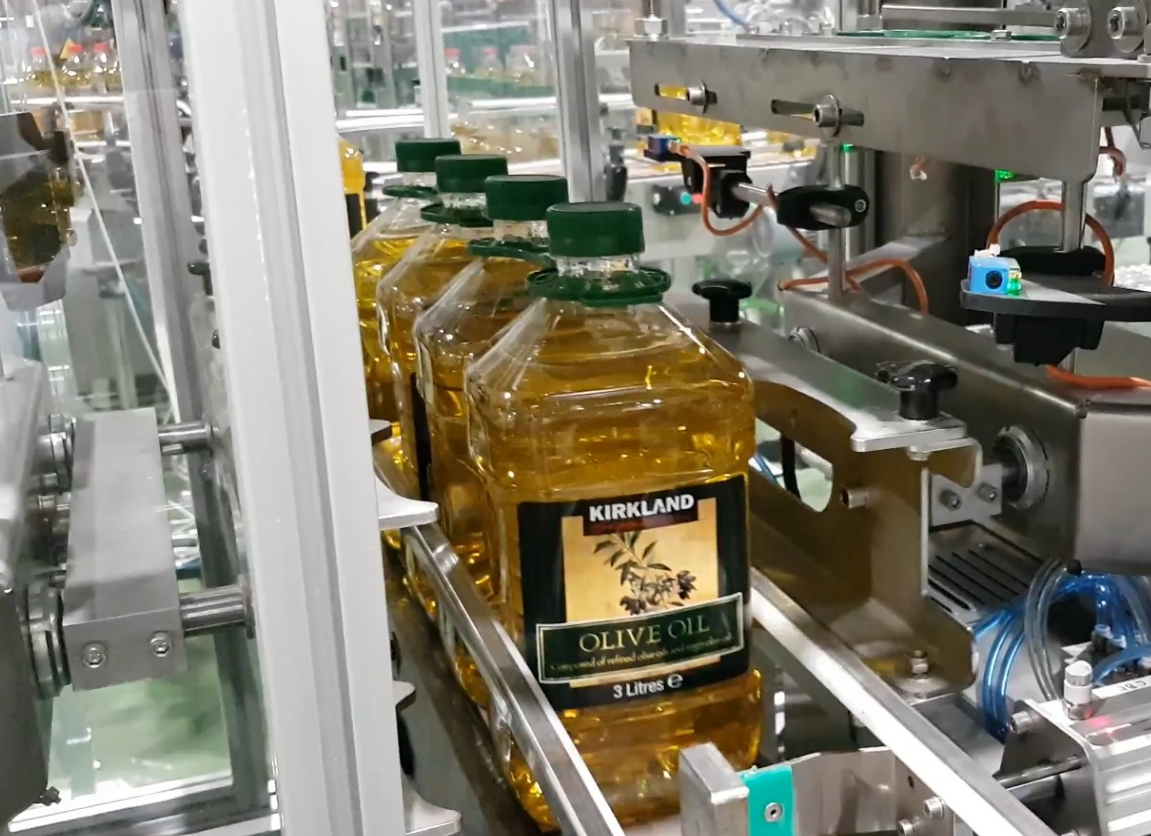

![Transportador de botellas o envases OBTINDU]()
-

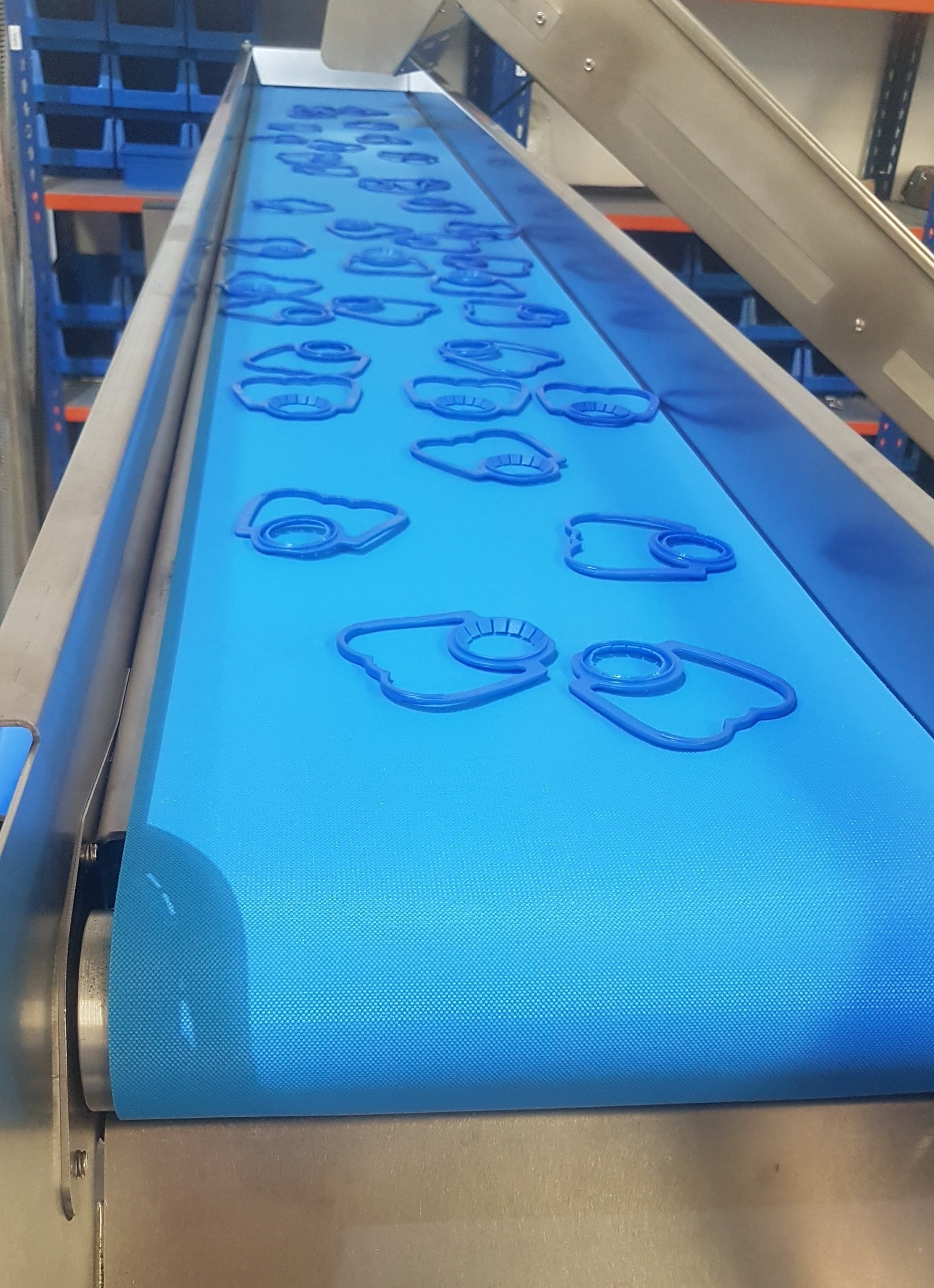

![Transportador de banda- OBTINDU]()
-
![Línea de transportador de palés OBTINDU de rodillos, para desplazar los pales vcíos o los paletizados de un lugar a otro con plena estabilidad.]()

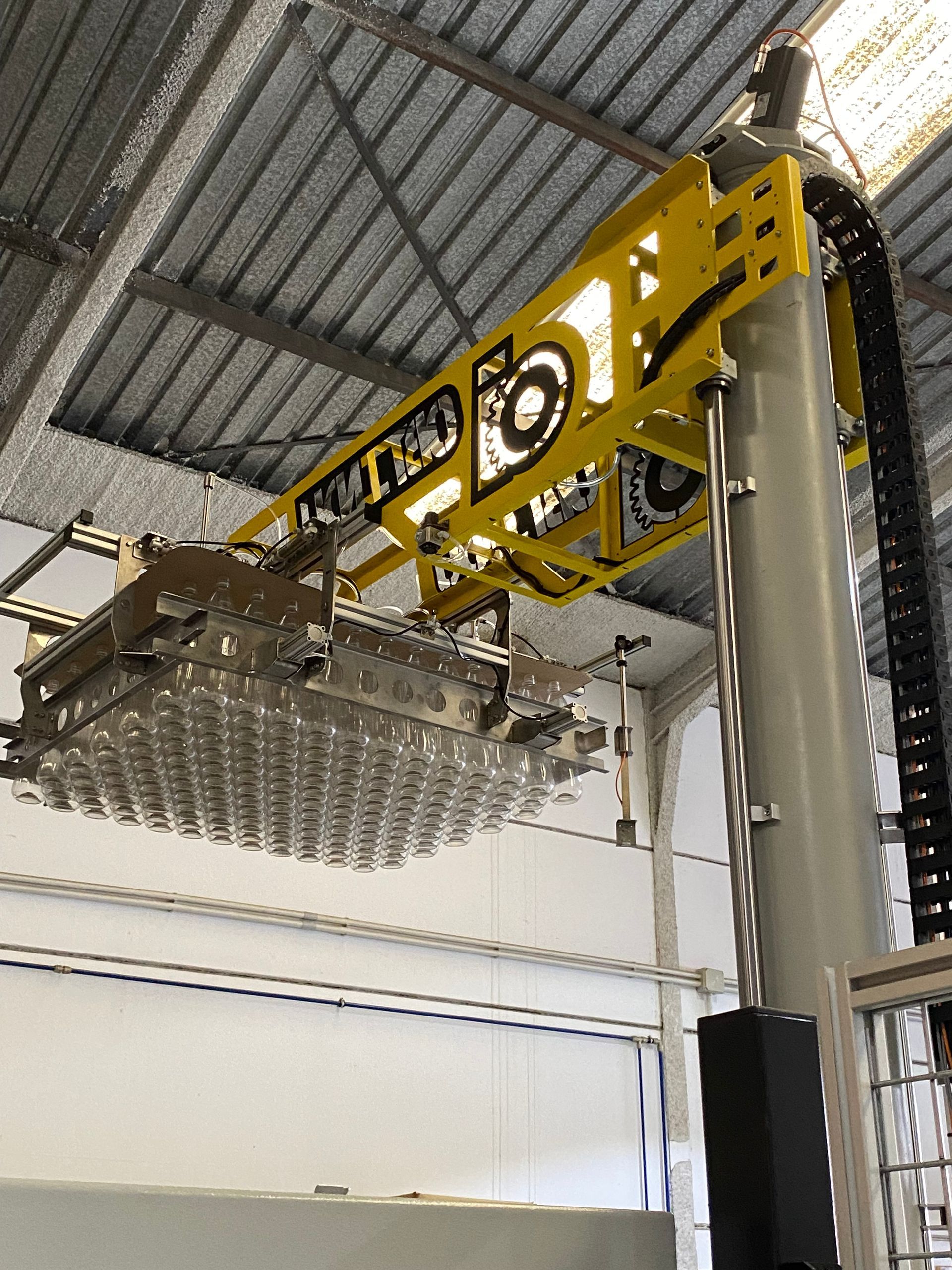

EMPTY PACKAGE DEPALLETIZING SYSTEM
Equipment designed to depalletize empty rigid containers such as bottles, cans or jars, which are already palletized, with the function of aligning them one by one and leading them correctly to the packaging line. Mod. CPM2.5-270-LM

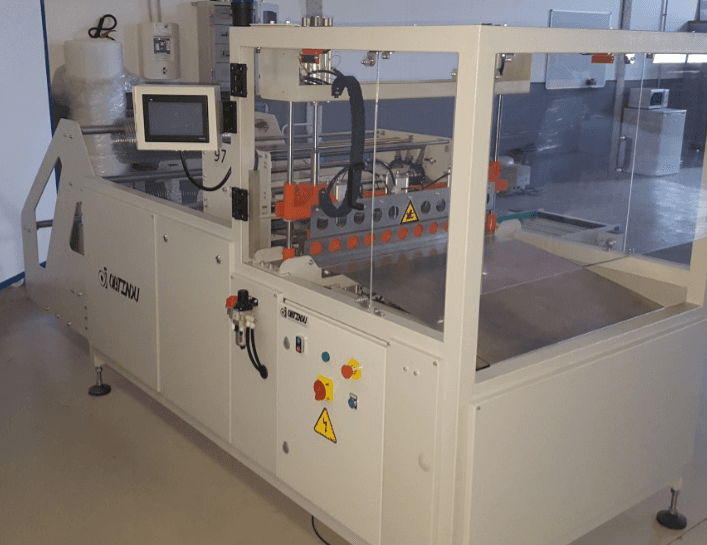

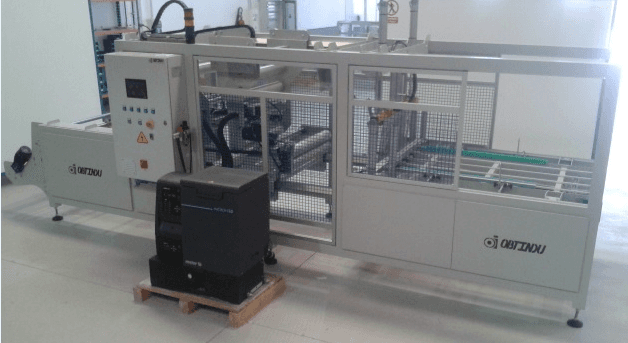

MACHINES FOR FORMING AIR FILTERS
We are at your disposal for any questions you want to ask us. For us, it is essential to provide you with good service and attention.
